Cuplock scaffolding system 　　　　　　[ 1 ]　[ 2 ]
　
　　Safe–All components have their own unique numbering system and certification in put in to our database after stringent testing and passing our quality assurance and quality control protocol.
　　Multi-functional–With the universal joint and fully interchangeable components, the Cuplock system can be used in most construction projects (Civil & Building) for both falsework and access. It is very versatile and diverse. Used in the shipping industries, oil and gas and aviation industries.
　　Versatile–Verticals are assembled with horizontals and diagonals using secure fixed cup connections. Its versatility has a distinct advantage to conventional scaffolding methods. A positive & ridged connection of four units is achieved in one single action. The Cup lock System is very cost effective and can be erected safely and quickly.
　　TimeSaving – Cuplock scaffold is the solution for temporary structures –Performance stages – Event grandstands etc. Small teams can erect it safely and quickly.
　　Economical – Easily assembled system scaffold saves time and labor costs
　　Durable– All components are hot dipped galvanized and manufactured to international standard.
　　Easily Stored–Individual pipe elements can be packed in bundles for easy storage and transportation. For returns, material can be packed in steel racks.
　　Reasonable customer requirement is acceptable .

　

Cuplock Standard

ITEM NO.
Description
L
Remarks
RSCS 05
0.5 Meter Cuplock Standard
0.5M
Hot-dip Galvanize
RSCS 10
1.0 Meter Cuplock Standard
1.0M
Hot-dip Galvanize
RSCS 15
1.5 Meter Cuplock Standard
1.5M
Hot-dip Galvanize
RSCS 20
2.0 Meter Cuplock Standard
2.0M
Hot-dip Galvanize
RSCS 25
2.5 Meter Cuplock Standard
2.5M
Hot-dip Galvanize
RSCS 30
3.0 Meter Cuplock Standard
3.0M
Hot-dip Galvanize

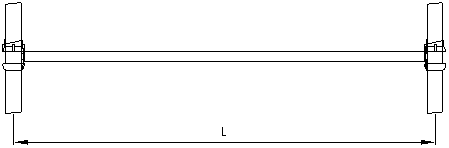

Cuplock Ldeger

ITEM NO.
Description
L
Remarks
RSCL 030
3' Cuplock Ldeger
3'(914.4)
Hot-dip Galvanize
RSCL 036
3'6" Cuplock Ldeger
3'6"(1066.8)
Hot-dip Galvanize
RSCL 040
4' Cuplock Ldeger
4'(1219.2)
Hot-dip Galvanize
RSCL 050
5' Cuplock Ldeger
5'(1524)
Hot-dip Galvanize
RSCL 060
6' Cuplock Ldeger
6'(1828.8)
Hot-dip Galvanize
RSCL 070
7' Cuplock Ldeger
7'(2133.6)
Hot-dip Galvanize
RSCL 080
8' Cuplock Ldeger
8'(2438.4)
Hot-dip Galvanize
RSCL 100
10' Cuplock Ldeger
10'(3048)
Hot-dip Galvanize




Cuplock Diagonal Brace 　

ITEM NO.
Description
L
Remarks
RSCB 032
3'X2M Cuplock Diagonal Brace
7'2 3/5 " (2199.1)
Hot-dip Galvanize
RSCB 042
4'X2M Cuplock Diagonal Brace
7'8 1/5" (2342.3)
Hot-dip Galvanize
RSCB 052
5'X2M Cuplock Diagonal Brace
8'3" (2514.5)
Hot-dip Galvanize
RSCB 072
7'X2M Cuplock Diagonal Brace
9'7 1/10" (2924.4)
Hot-dip Galvanize
RSCB 082
8'X2M Cuplock Diagonal Brace
10'4 3/20" (3153.7)
Hot-dip Galvanize
RSCB 102
10'X2M Cuplock Diagonal Brace
11'11 1/2" (3645.6)
Hot-dip Galvanize


Cuplock Board Bracket

ITEM NO.
Description
L
Remarks
RSCBB 01
1' Cuplock Board Bracket
1'
Hot-dip Galvanize
RSCBB 02
1'101/4" Cuplock Board Bracket
1'101/4"
Hot-dip Galvanize
RSCBB 03
2'75/16" Cuplock Board Bracket
2'75/16"
Hot-dip Galvanize

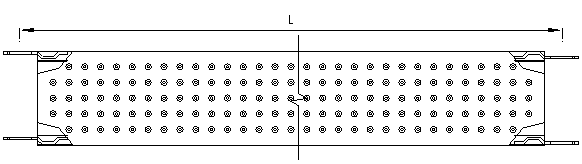

Cuplock Steel Plank

ITEM NO.
Description
L
Remarks
RSSP 030
3' Cuplock Steel Plank
3'(914.4)
Hot-dip Galvanize
RSSP 036
3'6" Cuplock Steel Plank
3'6"(1066.8)
Hot-dip Galvanize
RSSP 040
4' Cuplock Steel Plank
4'(1219.2)
Hot-dip Galvanize
RSSP 050
5' Cuplock Steel Plank
5'(1524)
Hot-dip Galvanize
RSSP 060
6' Cuplock Steel Plank
6'(1828.8)
Hot-dip Galvanize
RSSP 070
7' Cuplock Steel Plank
7'(2133.6)
Hot-dip Galvanize
RSSP 080
8' Cuplock Steel Plank
8'(2438.4)
Hot-dip Galvanize
RSSP 100
10' Cuplock Steel Plank
10'(3048)
Hot-dip Galvanize

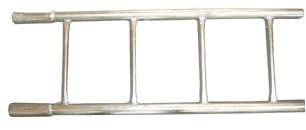

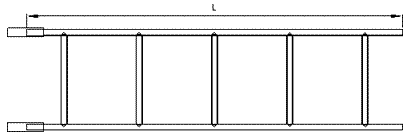

Cuplock Steel Ladder　

ITEM NO.
Description
L
Remarks
RSSL 030
3' Cuplock Steel Ladder
3'(914.4)
Hot-dip Galvanize
RSSL 050
5' Cuplock Steel Ladder
5'(1524)
Hot-dip Galvanize
RSSL 100
10' Cuplock Steel Ladder
10'(3048)
Hot-dip Galvanize
