Kwikstage scaffolding system 　　　　　　[ 1 ]　[ 2 ]
　
　　kwikstage is also known as kwikform, it is a modular system scaffold with wedge fixing for all access scaffold requirements.The wedge fixing of the ledgers and transoms gives a simple and fast means of erecting access scaffolding without loose parts,its rigid 4 way fixing giving a positive location without movement, spigot and wedge fitting on the standard to give guaranteed vertical alignment. This kind of scaffold system is widely used especially in the UK and British Commonwealth countries.
Reasonable customer requirement is acceptable .

　

Kwikstage Standard

ITEM NO.
Description
A
Remarks
RSKS 10
3'3" Kwikstage Standard
990.6mm
Powder Coat
RSKS 15
4'101/2" Kwikstage Standard
1485.9mm
Powder Coat
RSKS 20
6'6" Kwikstage Standard
1981.2mm
Powder Coat
RSKS 25
8'11/2" Kwikstage Standard
2476.5mm
Powder Coat
RSKS 30
9'9" Kwikstage Standard
2971.8mm
Powder Coat

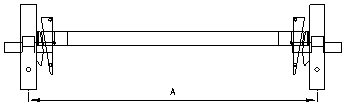

Kwikstage Ledger

ITEM NO.
Description
A
Remarks
RSKL 07
2'6" Kwikstage Ledger
762mm
Powder Coat
RSKS 12
4'2" Kwikstage Ledger
1270mm
Powder Coat
RSKS 18
6'0" Kwikstage Ledger
1829mm
Powder Coat
RSKS 24
8'0" Kwikstage Ledger
2438mm
Powder Coat


Kwikstage Diagonal Brace　

ITEM NO.
Description
A
Remarks
RSKB 01
2'6"X4'101/2" Kwikstage Brace
1670mm
Powder Coat
RSKB 02
4'2"X4'101/2" Kwikstage Brace
1954mm
Powder Coat
RSKB 03
4'2"X6'6" Kwikstage Brace
2353mm
Powder Coat
RSKB 04
6'0"X6'6" Kwikstage Brace
2696mm
Powder Coat
RSKB 05
8'0"X6'6" Kwikstage Brace
3142mm
Powder Coat
RSKB 06
8'0"X8'11/2" Kwikstage Brace
3475mm
Powder Coat

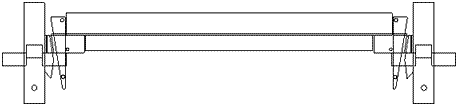

Kwikstage Transom

ITEM NO.
Description
A
Remarks
RSKT 07
2'6" Kwikstage Transom
762mm
Powder Coat
RSKT 12
4'2" Kwikstage Transom
1270mm
Powder Coat
RSKT 18
6'0" Kwikstage Transom
1829mm
Powder Coat
RSKT 24
8'0" Kwikstage Transom
2438mm
Powder Coat

　
Kwikstage Tie Bar

ITEM NO.
Description
A
Remarks
RSTB 07
2'6" Kwikstage Tie Bar
762mm
Powder Coat
RSTB 12
4'2" Kwikstage Tie Bar
1270mm
Powder Coat
RSTB 18
6'0" Kwikstage Tie Bar
1829mm
Powder Coat
RSTB 24
8'0" Kwikstage Tie Bar
2438mm
Powder Coat

Kwikstage Plank　

ITEM NO.
Description
A
Remarks
RSKP 07
2'6" Kwikstage Plank
762mm
Electro Plated
RSKP 12
4'2" Kwikstage Plank
1270mm
Electro Plated
RSKP 18
6'0" Kwikstage Plank
1829mm
Electro Plated
RSKP 24
8'0" Kwikstage Plank
2438mm
Electro Plated
